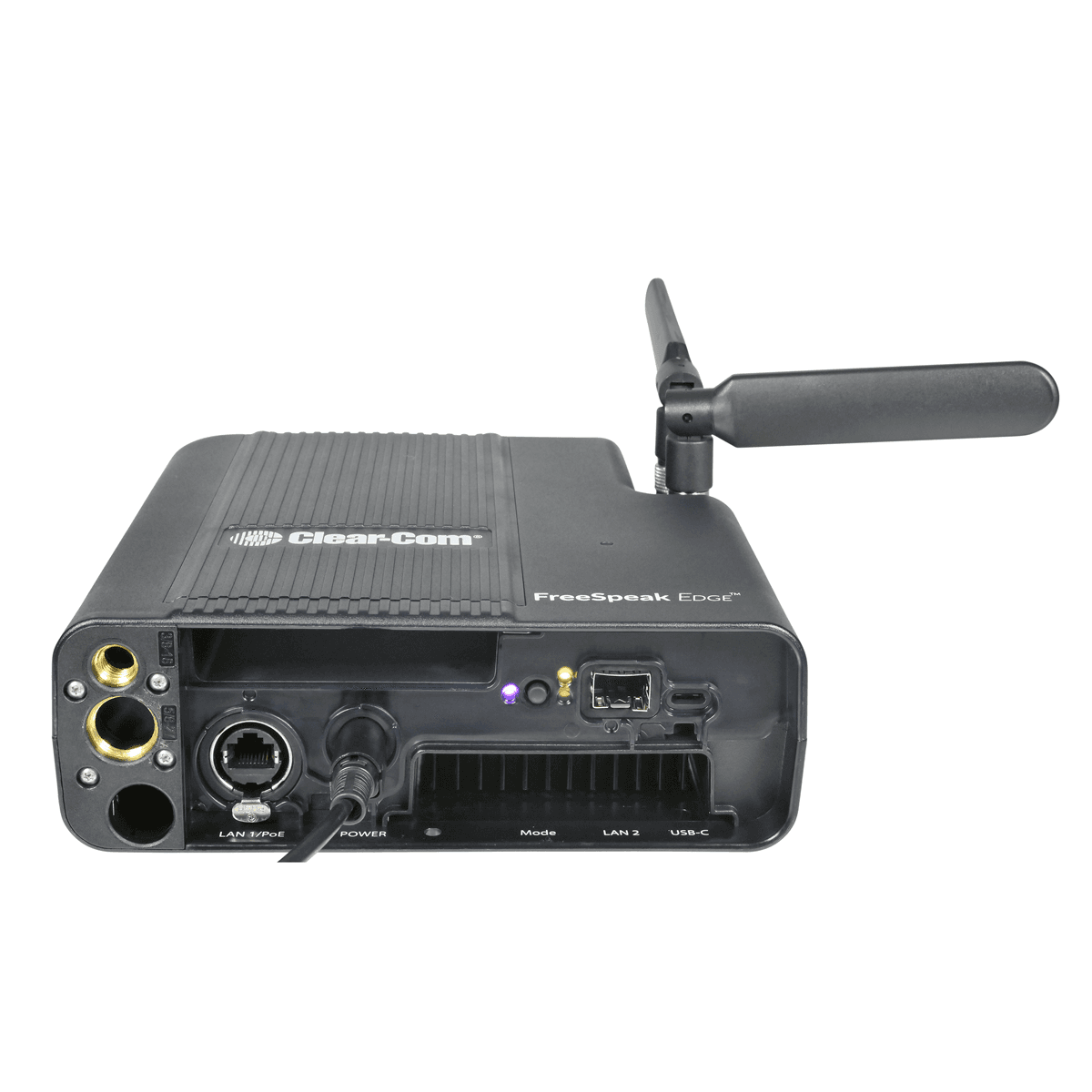

The ClearCom FreeSpeak Edge FSE-TCVR-50-IP is an IP-enabled transceiver antenna tailored for the FreeSpeak Edge Wireless Intercom System. As a segment of the FreeSpeak™ series, the FreeSpeak Edge™ offers multi-channel, two-way digital wireless intercommunication. It facilitates duplex communication between the Eclipse® HX matrix and FreeSpeak Edge beltpacks via the E-IPA-HX interface card. A single transceiver can accommodate up to ten FSE-BP50 beltpacks. With a 64-port E-IPA-HX card, a system can support 64 beltpacks and transceivers.
This device operates wherever an AES67 IP network is available, connecting through etherCON RJ45 (copper) or high-speed SFP cage (fiber) to the E-IPA-HX card over an AES67 network switch. It can draw power from a Power-over-Ethernet (PoE) switch or use the provided external power supply.
Sporting an IP53 rating, it's resistant to water and dust. It's versatile in mounting, suitable for walls, mic stands, or tripod spigots, with visible multi-colored status lights.
Reminder: This is a part of a broader system. Check the provided diagram for optimal Clear-Com intercom configurations.
