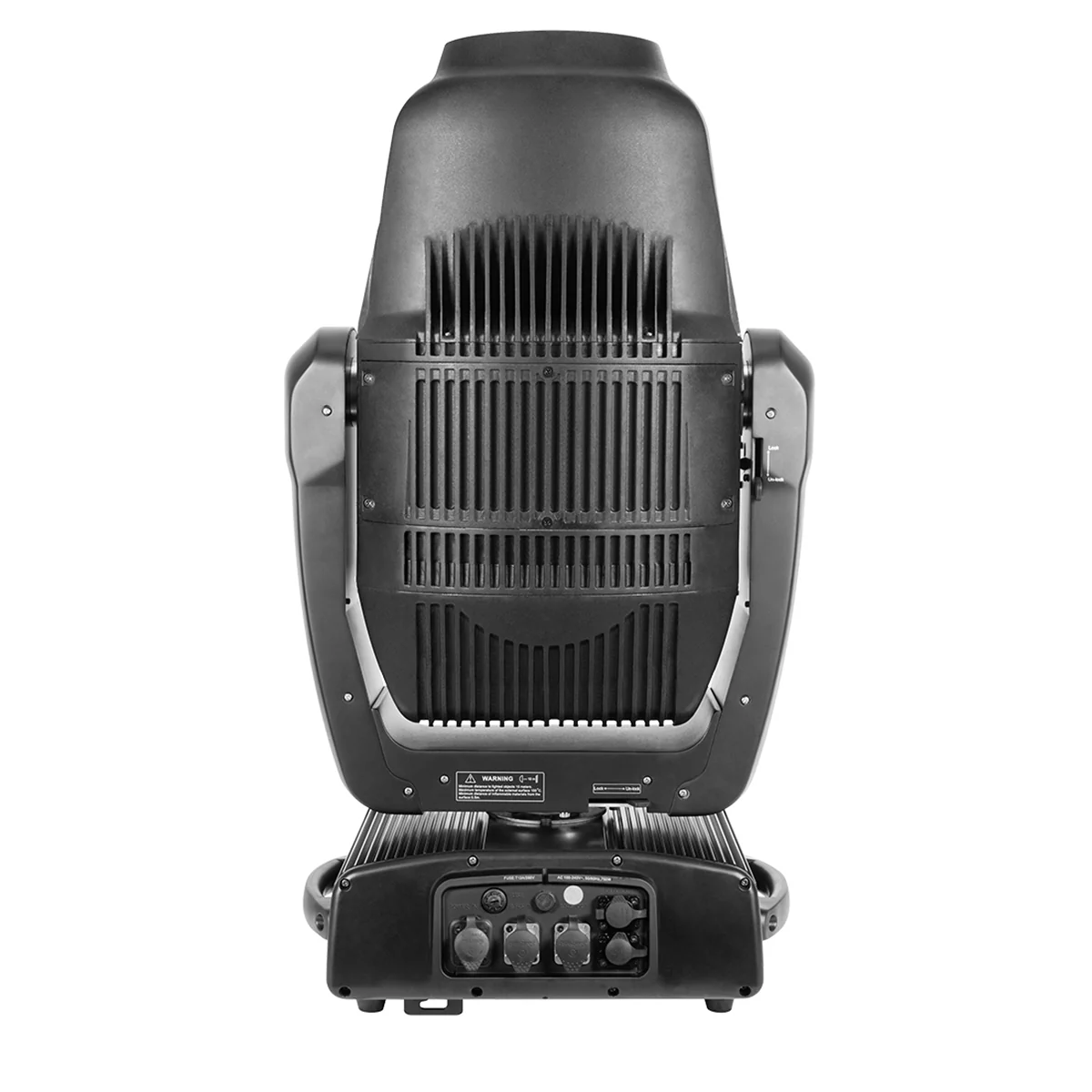

Elation Proteus Hybrid – IP65-Rated 3-in-1 Hybrid Moving Head

The Elation Proteus Hybrid is a versatile and rugged 3-in-1 hybrid moving head luminaire, designed to deliver exceptional performance in beam, spot, and wash modes. With an IP65 rating, it ensures reliable operation in outdoor environments, making it ideal for large-scale events, concerts, and installations.

Key Features:

• 3-in-1 Functionality: Operates as a beam, spot, and wash fixture, providing flexibility for various lighting applications.

• Powerful Light Source: Equipped with the Philips™ MSD Platinum 21R 470W 80 CRI 8,000K lamp, producing up to 14,000 lumens.

• Advanced Optical System: Features a motorized zoom from 2° in beam mode to 38° in spot mode and 40° in wash mode, allowing for precise beam control.

• Color Mixing: Utilizes full CMY and linear CTO color mixing, along with 14 dichroic colors including CTB, CTO, and UV, for a wide color palette.

• Gobo Effects: Offers 8 rotating glass interchangeable and 14 static-stamped metal gobos, providing diverse pattern options.

• Animation Wheel: Includes a full 360° bi-directional animation wheel for dynamic effects.

• Prisms and Frost: Features 8-facet circular and 4-facet linear rotating prisms, along with a frost filter, to enhance visual effects.

• Focus Control: Equipped with motorized focus and auto-focus capabilities for sharp imaging.

• Shutter and Strobe: High-speed mechanical shutter and strobe functions for dynamic lighting effects.

• Connectivity: Supports DMX, RDM, Art-NET, and sACN protocols, with IP-rated 5-pin XLR and RJ45 Ethernet in/out connections.

• Wireless Control: Includes Elation's E-FLY™ internal wireless DMX transceiver for convenient control.

• Durability: IP65-rated housing with locking power cable in, ensuring reliable operation in outdoor conditions.

• User Interface: Features a full-color 180° reversible menu display with a 6-button touch control panel and battery backup for display power.

• Power Supply: Multi-voltage universal auto-switching power supply (100–240V) for global compatibility.

The Elation Proteus Hybrid combines versatility, durability, and advanced features to meet the demands of professional lighting applications. Its robust design and comprehensive functionality make it a reliable choice for outdoor events and installations.
