J8 Loudspeaker

d&b Audiotechnik

For Sale

For Rent

In stock and ready to ship

Detail

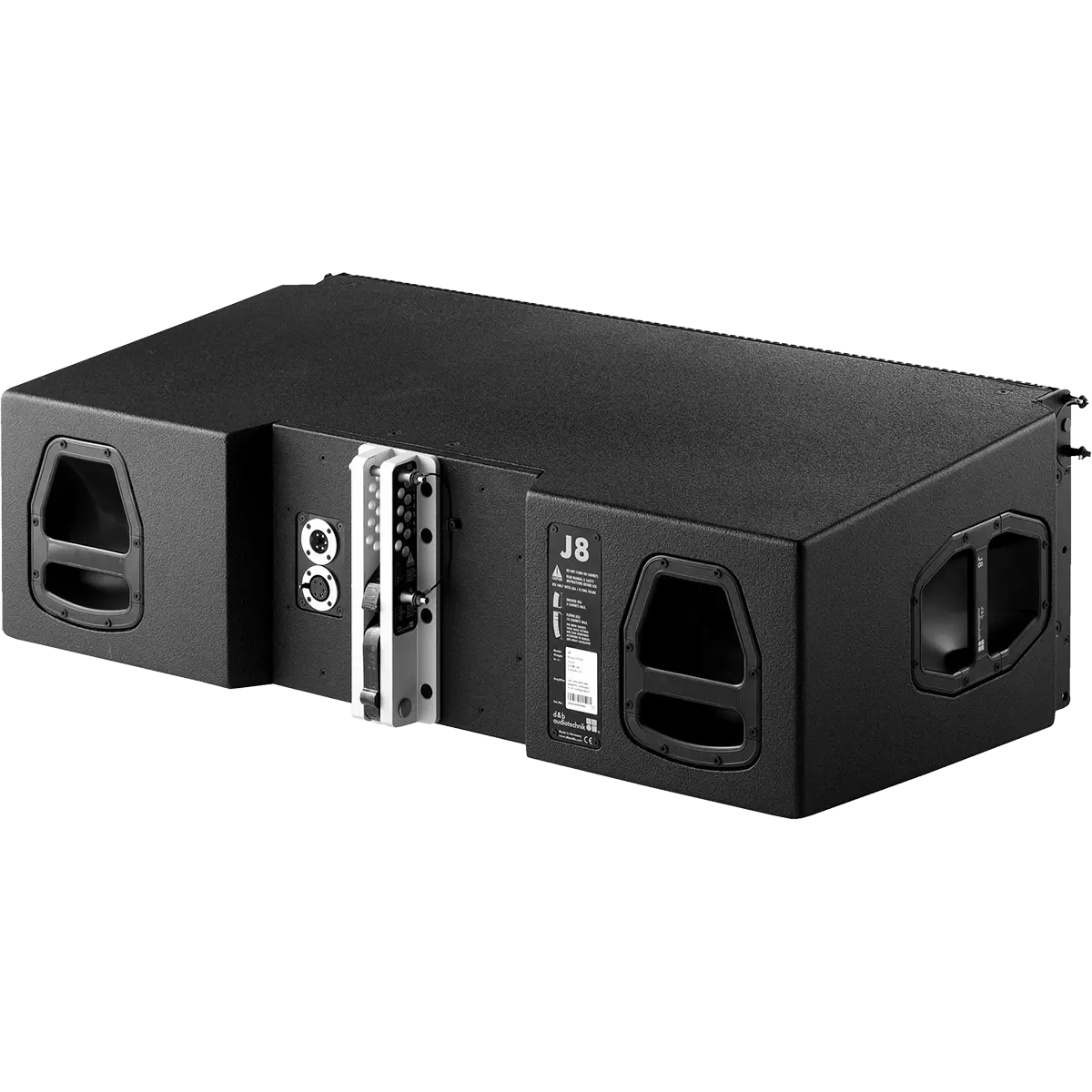

The J8 is a sophisticated 3-way loudspeaker system featuring dual 12" low-frequency drivers, a horn-loaded 10" mid-frequency driver, and two high-frequency compression drivers with 3" voice coils, all mounted on a dedicated wave-shaping device. Designed for flexibility and performance, the J8 can be arrayed in vertical columns of up to 24 speakers, with adjustable vertical splay angles ranging from 0° to 7° in 1° increments. This design ensures coherent coupling of the cylindrical wave segments in the vertical plane.


Thanks to the dipolar arrangement of the neodymium LF drivers, the J8 maintains exceptional 80° horizontal constant directivity down to 250 Hz. It is fully compatible, both acoustically and mechanically, with the J12 loudspeaker, allowing for versatile configurations of J8s, J12s, and J-SUBs.


The J8 cabinet is built from durable marine plywood with a robust Polyurea Cabinet Protection (PCP) finish, ensuring impact and weather resistance. A rigid metal grill protects the front, while four handles on the sides and rear facilitate easy handling. The rear panel also includes two NLT4F/M or NL8 connectors wired in parallel for seamless connectivity.

Detail

The J8 is a sophisticated 3-way loudspeaker system featuring dual 12" low-frequency drivers, a horn-loaded 10" mid-frequency driver, and two high-frequency compression drivers with 3" voice coils, all mounted on a dedicated wave-shaping device. Designed for flexibility and performance, the J8 can be arrayed in vertical columns of up to 24 speakers, with adjustable vertical splay angles ranging from 0° to 7° in 1° increments. This design ensures coherent coupling of the cylindrical wave segments in the vertical plane.


Thanks to the dipolar arrangement of the neodymium LF drivers, the J8 maintains exceptional 80° horizontal constant directivity down to 250 Hz. It is fully compatible, both acoustically and mechanically, with the J12 loudspeaker, allowing for versatile configurations of J8s, J12s, and J-SUBs.


The J8 cabinet is built from durable marine plywood with a robust Polyurea Cabinet Protection (PCP) finish, ensuring impact and weather resistance. A rigid metal grill protects the front, while four handles on the sides and rear facilitate easy handling. The rear panel also includes two NLT4F/M or NL8 connectors wired in parallel for seamless connectivity.
