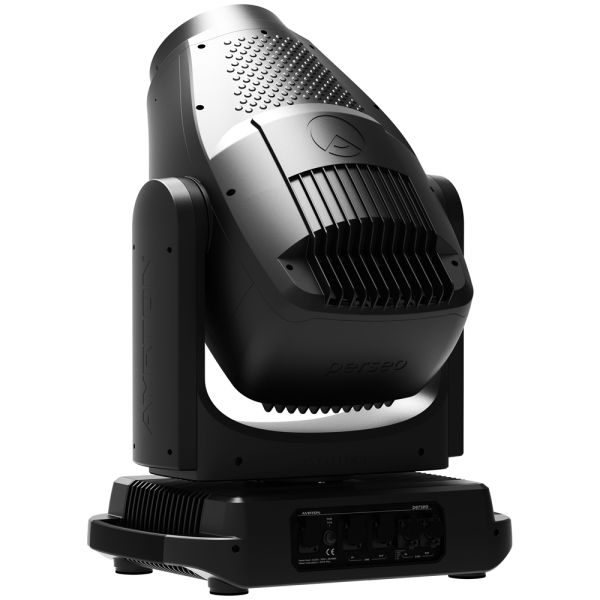

Ayrton Perseo‑S IP65 500 W LED Moving Head Profile

The Perseo‑S is Ayrton’s first outdoor-capable, weather-sealed moving-head profile, delivering spectacular performance in any environment—from festivals and architectural facades to theatrical productions under the stars. With its rugged IP65-rated aluminum housing and robust optics, this compact powerhouse thrives in both indoor and outdoor settings.

🌟 Key Features & Benefits

• High-Output LED Engine:

  • 500 W monochrome LED calibrated at 8,000 K for crisp white light

  • Emits up to 27,400–30,000 lm (34,000 lm engine, 30k lumen fixture) with CRI > 70 (or > 90 in TC version) for vibrant stage presence.

• Precision Optics & Zoom:

  • 13-element optical system with 148 mm front lens

  • 8:1 zoom spans 7°–58°, producing flat beams with zero hot spots, even at wide zoom.

• Robust Outdoor Design:

  • Die-cast aluminum housing sealed to IP65

  • Phase-change liquid cooling with six external fans ensures heat management without compromising weather resistance.

• Full-Service Creative Tools:

  • Subtractive CMY with variable CTO + 6-position color wheel for rich, pastel tones.

  • Dual gobo wheels: rotating (7 HD gobos) + fixed (11 HD gobos) and animation wheel.

  • Dynamic effects: 15-blade iris, light and heavy frost, plus dual prisms (5-facet circular & 4-facet linear).

• Framing & Movement:

  • 4 shutter blades covering full beam surface, with ±45° framing rotation

  • Fast, precise pan (540°) and tilt (~270°) with high-resolution steppers and auto-repositioning 

• Smart Control & Cooling:

  • DMX‑512/RDM, Art‑Net, sACN, and wireless CRMX TiMo™ support

  • Graphic LCD with IP65 button panel

  • Electronic dimming (0–100%), strobe (1–25 Hz), silent airflow modes, and temperature protection

• Durable Spec & Compliance:

  • Max power draw ~800 W (100–240 V AC, 50/60 Hz)

  • Rugged features: omega‑bracket mounting, safety attachment points, and full certifications (CE, UL1573, FCC, etc.) 

🔍 Summary
The Perseo‑S merges Belle Epoque-level power and precision with a fully IP-rated, all-weather design. Its suite of lighting features—high-output CMY/CTO, advanced effects, four-blade framing, and reliable cooling—makes it ideal for touring, special events, and outdoor installations that demand professional, no-compromise performance.
