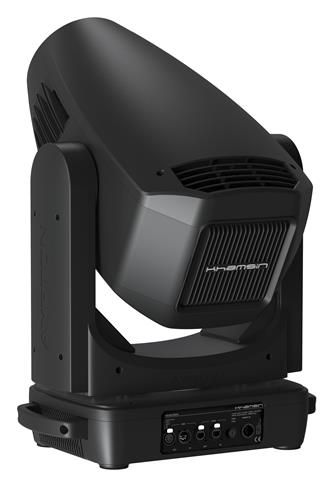

Ayrton Khamsin‑S LED Profile

Ayrton’s Khamsin‑S brings unrivaled power and precision to a compact profile, delivering 40,000 lumens of brilliant metallic-white output from its 750 W LED engine. Built into a rugged cast-aluminum frame and weighing just 39.8 kg, it’s engineered for large venues where brightness and clarity are paramount.

Key Highlights

• Blazing brightness: 750 W LED engine with up to 60,000 lm source, calibrated to 8,000 K (S-version), delivering 40,000 lm at ~6,800 K for dramatic punch .

• Versatile zoom optics: Motorized 8:1 zoom, 13-lens system, 7°–58° range, 158 mm flat-beam lens.

• Rich color & mixing tools: CMY with CTO, fixed six-position color wheel offering vivid tones and pastels .

• Dual gobo wheels: Two rotating gobo wheels featuring 6 HD glass gobos each, plus open positions, offering morph and image flexibility.

• Creative effects suite: Includes animation wheel, 15-blade iris, dual frost filters (light + heavy), and two prisms (5-facet circular, 4-facet linear) for layered visuals.

• Precision movement: 540° pan / ~262–270° tilt via high-resolution steppers with auto repositioning.

• Framing unit: 4 individually positionable blades across 100% surface, ±45° rotation for flawless masking.

• Powerful control & silent operation: Liquid cooling with variable-speed fans and silent modes; DMX‑512/RDM, ArtNet, sACN, jog wheel LCD; LumenRadio CRMX wireless.

• Robust build: IP20-rated cast-aluminum housing, powerCON TRUE1, etherCON RJ45, 1,150 W PSU, all–position mounting with safety attachments.

• Compact & transportable: Dimensions: 494 × 778 × 280 mm; Flight-case foam: 655 × 590 × 555 mm; Weight: 39.8 kg
