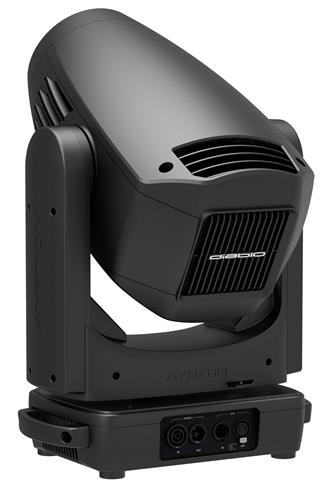

Ayrton Diablo 300 W LED Profile

Ayrton Diablo 300 W LED Profile

Overview
The Diablos from Ayrton combines record-breaking output and compact portability in a premium 300 W LED profile unit. Drawing from Ayrton’s renowned Mistral platform, it delivers unmatched brightness (up to 19,000 lumens) in a sleek housing weighing just 21.8 kg .

Key Highlights

• Compact yet powerful: 13-element zoom optics (7–53°) with a 119 mm frontal lens provide excellent beam control.

• Choose your light:

  • Diablo S – 300 W monochromatic LED with up to 26,500 lm, metallic white circa 7,000 K, CRI > 70–90, ideal for high-impact stage lighting.

  • Diablo TC – Designed for faithful color reproduction at 6,000–6,500 K, native CRI > 90 with high TM‑30 values.

Precision Optics & Effects

• Motorized CMY colour mixing with a progressive CTO plus a 7-colour wheel creates an infinite palette.

• High-definition gobos: one wheel with 7 HD glass gobos, plus a rotating gobo wheel.

• Dynamic effects: animated effects wheel, 15-blade iris, heavy-frost, five-facet rotating prism—transparent, flexible design for complex visuals.

Framing & Zoom

• Innovative 4-blade framing system for edge-perfect beam shaping in any orientation.

• 7.5:1 zoom range for tight spot to wide wash capabilities.

Movement & Control

• High-precision pan (540°) and tilt (263°) with auto repositioning.

• Full DMX/RDM compatibility (34–56 channels), onboard LCD with jog wheel, and optional wireless CRMX TiMo™ receiver.

Noise & Cooling

• Phase-change liquid cooling with whisper-quiet “Studio/Silent” modes—perfect for noise-sensitive environments.

Build & Installation

• Rugged, light chassis (21.8 kg) with steel and aluminum body; ABS-PC housings (IP20).

• Universal power (100–240 V), powerCON TRUE1, DMX 5‑pin, and safety attachments included.

• Compact dimensions: 365 × 591 × 212 mm; optional flight case foam 430 × 660 × 280 mm.

Ideal Applications

• Designed for touring, concert stages, broadcast studios, theatrical venues, and high-end architecture where compact size, high brightness, and versatile effects are demanded.

Why Choose Diablos?
Ayrton’s engineering packs tour‑grade features like high-CRI/metallic whites, quiet operation, extensive built-in effects, and professional DMX/RDM control—all in the smallest, lightest package of its class. It’s the ideal lighting workhorse for creatives, delivering both precision and power night after night.
