Console Hardware:

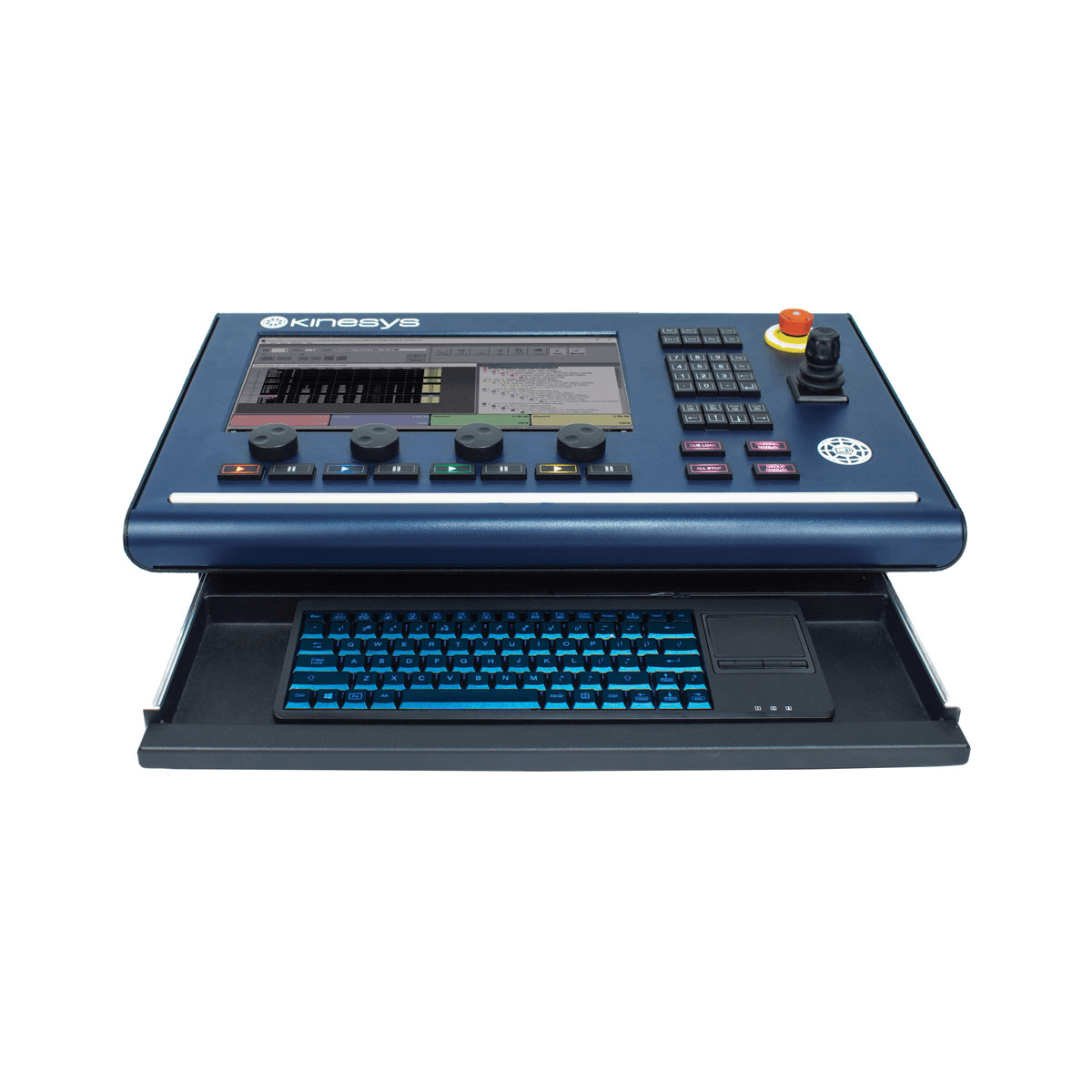

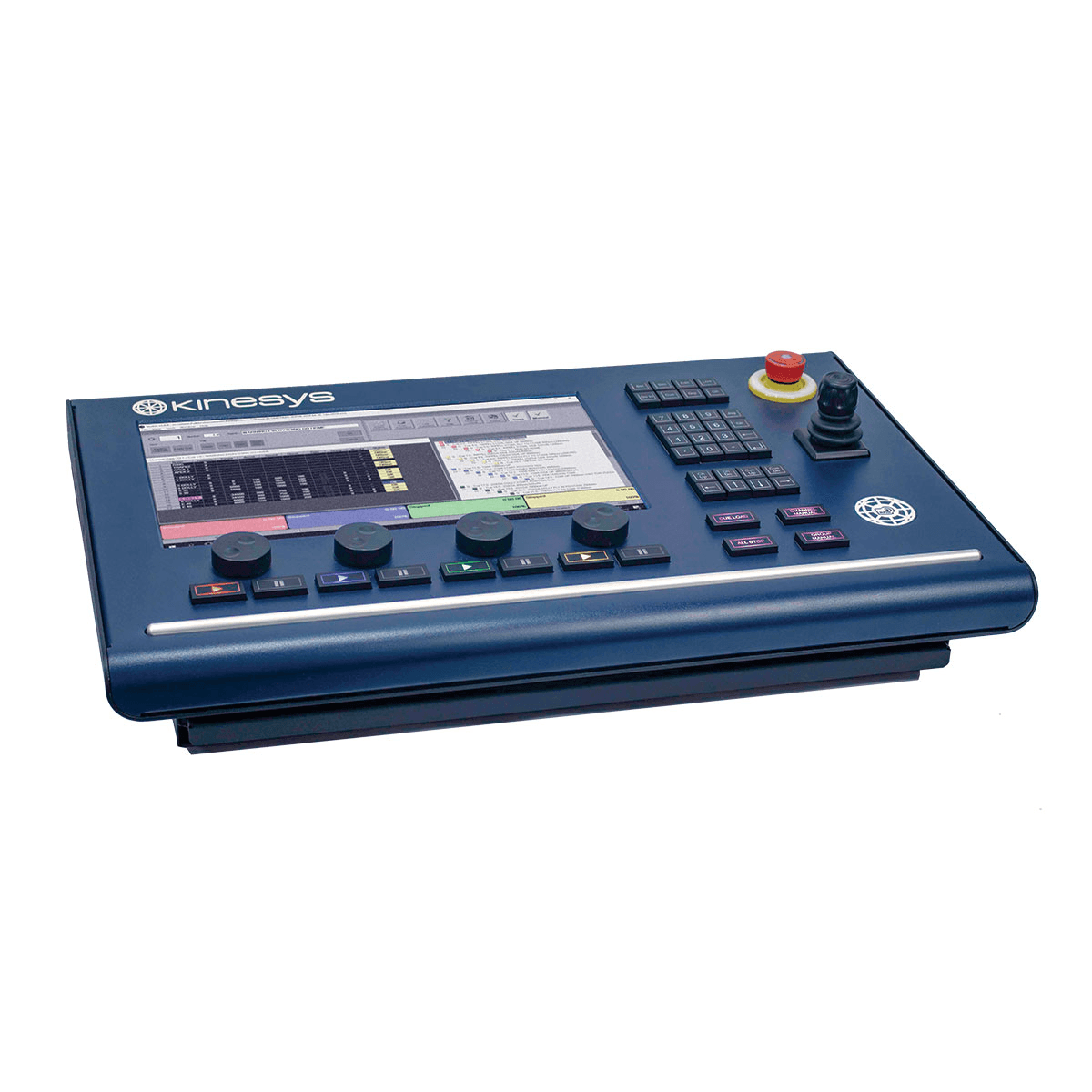

The Vector Console epitomizes a comprehensive control solution, featuring an inbuilt, specialized PC that operates our well-regarded Vector Software. This console allows users to execute, modify, and manage cues through an integrated keypad that reflects the familiar structure of the original Vector software's keypad. In addition, it boasts an expanded user interface, complete with a 15.6″ illuminated widescreen LCD, capacitive touchscreen, jog-wheels, joystick, and definitive stop/start buttons. It's also equipped with a luminosity-adjustable backlit keyboard and trackpad, providing immediate entry to essential Vector functions.

The console's accompanying Vector software is meticulously optimized for touch screen interaction. Additionally, the hardware introduces beneficial enhancements to the software’s fundamental capabilities, such as:

• RFID Login

• Inbuilt Emergency Stop & Dead Man's Handle (DMH)

• Exclusive Media Network output

• Dual External Monitor Outputs (1 HDMI, 1 VGA)

• Pair of USB ports for additional memory and software updates

Crafted for user-friendly interaction, this newest member of the Kinesys lineup represents the most straightforward approach to engaging with Vector software, whether for show programming or execution.

Console Software:

Vector software enables the construction and execution of cues with diverse linking alternatives, constrained only by creative limits regarding the number of cues or channels controlled.

Cue Creation and Modification: Vector is endowed with an array of features for cue development and adjustment, facilitating swift input and cue programming. Its sophisticated linking capabilities permit the easy assembly of intricate cue sequences, preserving optimal flexibility in controlling motion devices. With four playbacks, it allows multiple cues to run concurrently, and its manual operation features ensure all movement facets are simple and secure.

Compatibility and Accessories: Vector operates on suitable Windows platforms and offers an optional USB keypad for enhanced editing and control speed.

System Integration: Full compatibility with other Kinesys products ensures extensive feedback is accessible for the operator, simplifying system supervision. Exhaustive channel settings permit distant setup of the drives and controllers within the network.

Safety Measures: The system incorporates three user login tiers, delivering varied access levels to uphold system integrity and security. For intricate movements, a 'Dead Man's Handle' can be allocated per channel, along with group halt and error windowing functions, preventing asynchronous movement within a group.
